Main advantage:

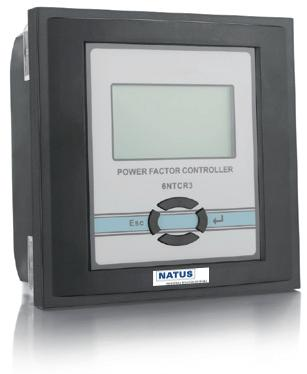

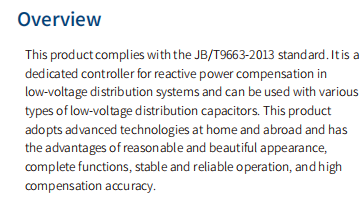

The NTIF81 power factor controller integrates the functions of data acquisition, reactive power compensation, and power grid parameter analysis.

A new type of power distribution measurement and control equipment, suitable for monitoring and reactive power compensation control of AC 0.4kV, 50Hz low-voltage power distribution system.

The power factor controller takes high-speed digital signal processor as the core, adopts AC sampling, and the man-machine interface is 128X64 dot matrix large-screen LCD display with power distribution monitoring, reactive power compensation, harmonic analysis, adaptive frequencyrate algorithm, the input signal varies between 45Hz and 55Hz.

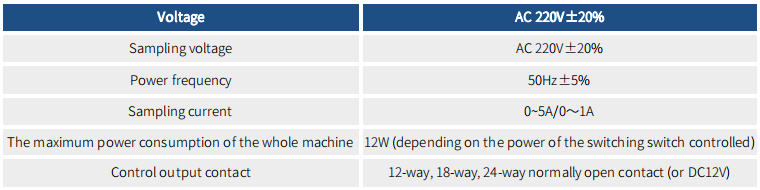

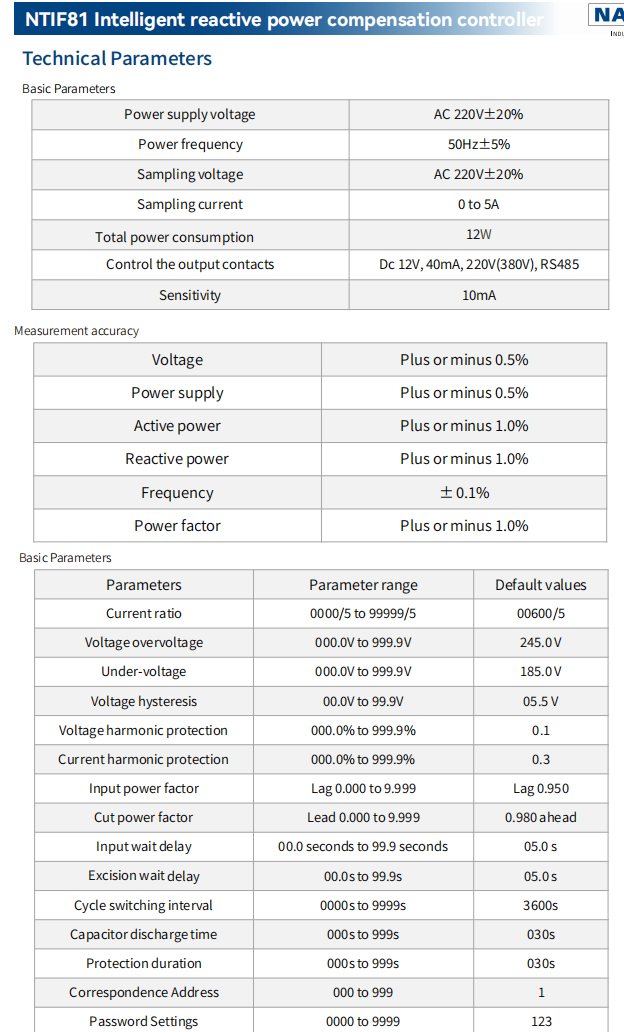

Basic parameters:

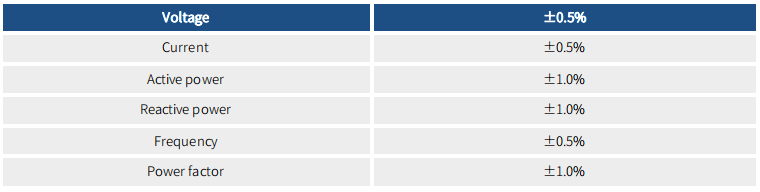

Measurement accuracy:

More information

Request manual
