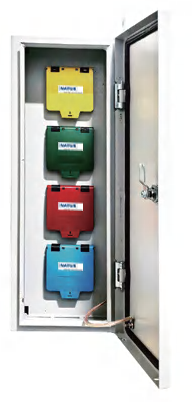

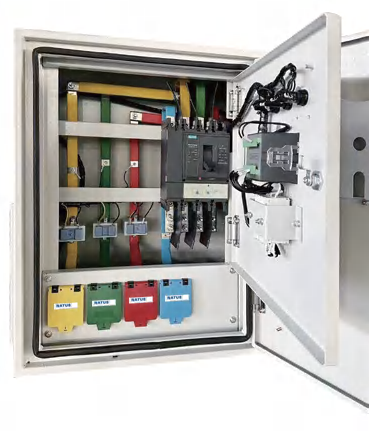

0.4kV Emergency Power Rapid Access Box, primarily used for power supply assurance in special vehicles such as low-voltage power supply trucks, is particularly suitable for rapid emergency power supply during repairs for users in transformer districts, critical power facilities, and urban residential communities. It significantly reduces emergency power supply preparation time and enhances power supply reliability. This device is specifically designed for scenarios where existing transformer substations require rapid connection of 0.4kV emergency power to JP cabinets during maintenance on the 10kV side, ensuring uninterrupted power supply to 0.4kV users.

Reliable operation Continuous power supply:

The product utilizes panel sockets featuring rapid connection, high current-carrying capacity, low contact resistance, and a plug-in lifespan of up to 10,000 cycles. When integrated with the emergency power vehicle's synchronizing device, it enables uninterrupted continuous power supply, providing a robust foundation for rapid emergency restoration and power-restoration systems.
