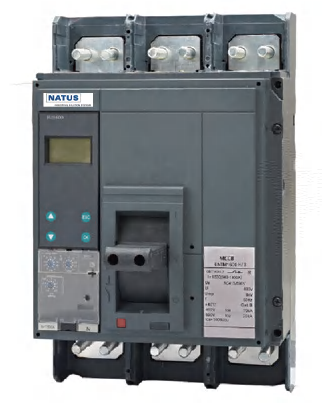

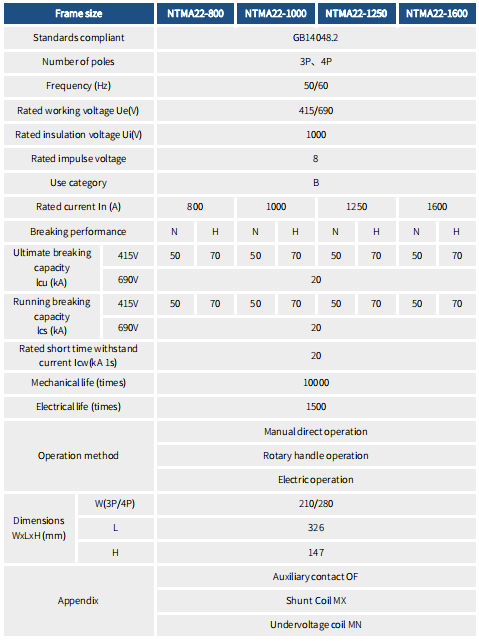

NTMA22molded case circuit breaker is suitable for AC 50/60HZ, rated working voltage 415V/690V, rated insulation voltage of 1000V, rated working current of 320A to 1600A for infrequent switching and infrequent starting of motors. Circuit breakers have overload, isolation, short-circuit, under-voltage protection and grounding functions, and can protect distribution lines and power equipment from damage.
