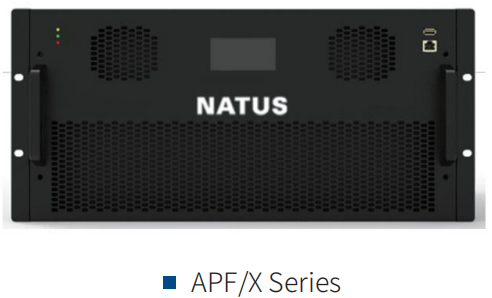

The NTQF81 Active Power Filter is a new-generation harmonic mitigation device developed using modern power electronics technology, a multi-core processing architecture based on high-speed DSP+FPGA, and fully digital signal processing techniques. Specifically designed to address the widespread harmonic pollution issue in low-voltage distribution systems, it simultaneously performs harmonic filtering, reactive power compensation, and three-phase imbalance regulation. The voltage-isolated active filter variant delivers notably lower power consumption, enhanced operational stability, and superior harmonic filtering performance.

Product Features:

Multi-core processing architecture utilizing DSP+FPGA
Compensation Features: Filter out noise, compensate reactive power, compensate three-phase imbalance
Multi-machine parallel operation with independent control functionality
Parallel installation configuration with modular design for easy expansion
IGBT from Infineon
Automatic current limiting function
Automatic System Resonance Clearance
500 historical fault records
Extremely wide operating voltage range
Standard Communication Interface
Self-diagnostic and self-testing functions
Compact and lightweight, easy to install
