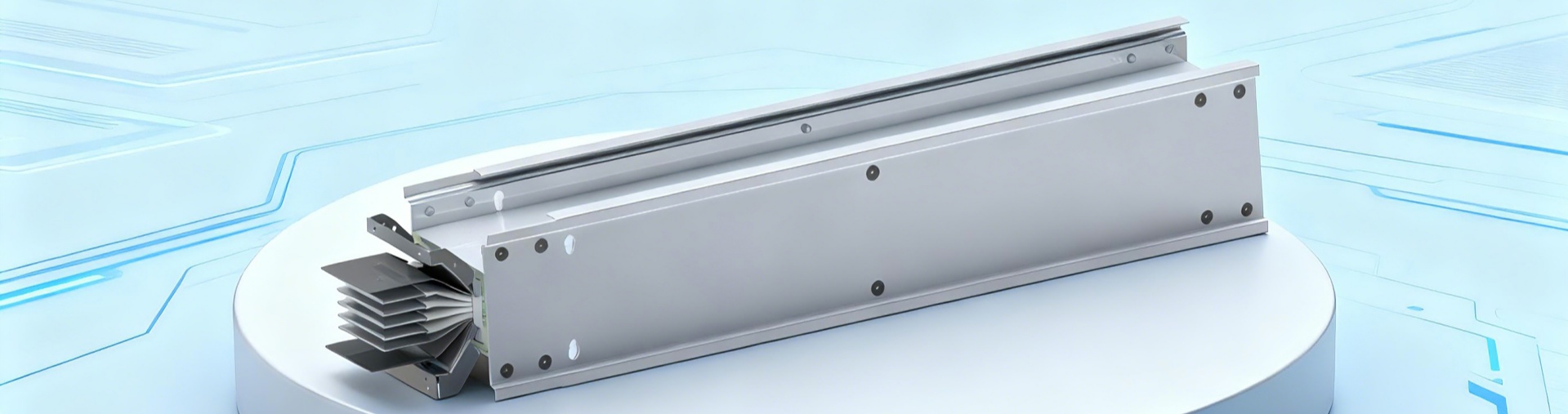

Main features of the product
Conductor: T2 electrolytic copper or aluminum material that meets the national standard GB5585 is used, and the surface is treated with environmentally friendly anti-corrosion tin plating technology
Shell: Using aluminum magnesium alloy special profiles as the shell, the shell can be grounded as a whole and can also be used as a PE row, with equivalent efficiency
Insulation material: Made of DuPont MYLAR polyester film from the United States, molded and thermoformed as a whole for insulation and wrapping. The insulation and heat resistance level is Class B

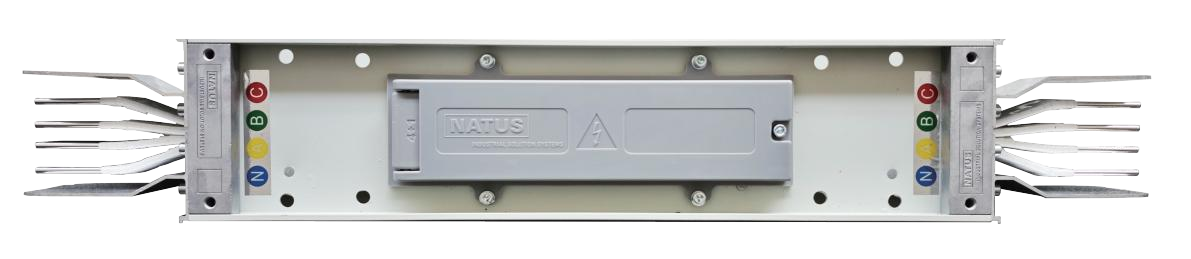

There is a interlocking device between the plug-in box and the bus duct, and there is a interlocking device between the plug-in box door and the built-in circuit breaker

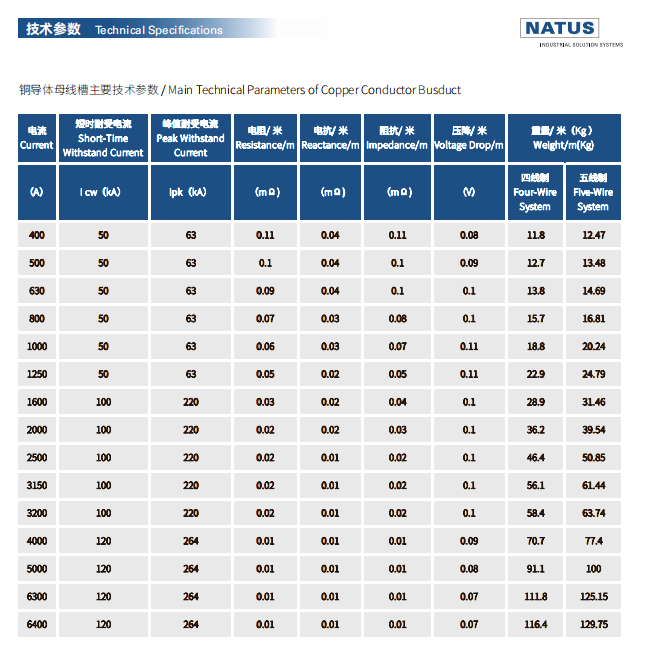

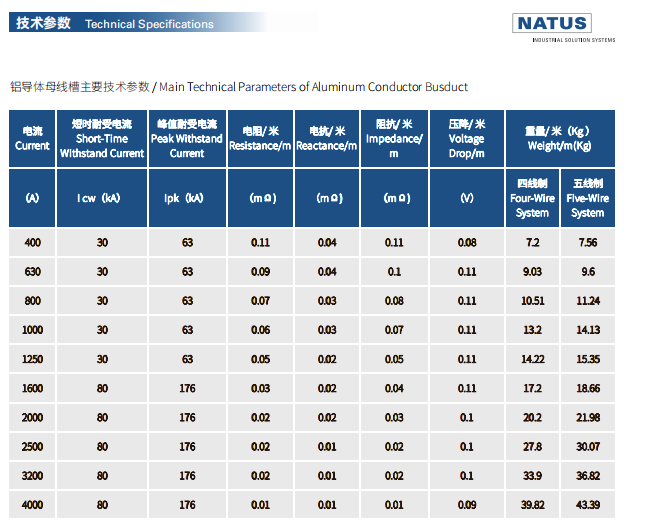

Technical parameter
| Serial number | Name | Main technical parameters | ||
| 1 | Rated insulation level | Rated insulation voltage Ui | 1000V | |
| Rated working voltage Ue | 1000V | |||
| 2 | Rated frequency | 50/60Hz | ||
| 3 | Rated current | Copper conductor | 400-6300A | |
| Aluminum conductor | 400-5000A | |||
| 4 | Environmental temperature (M in./Max/24-hour average temperature) | -15℃/+45℃/日均35℃ | ||
| 5 | Protection level |
IP42、IP54、IP66 |
||
| 6 | Shell material | Aluminum magnesium alloy | ||
| 7 | Shell color (can be selected according to customer needs) | RAL7032/RAL7035 | ||
| 8 | Connector torque | 70N.m | ||
| 9 | Class of pollution | Level 3 | ||
