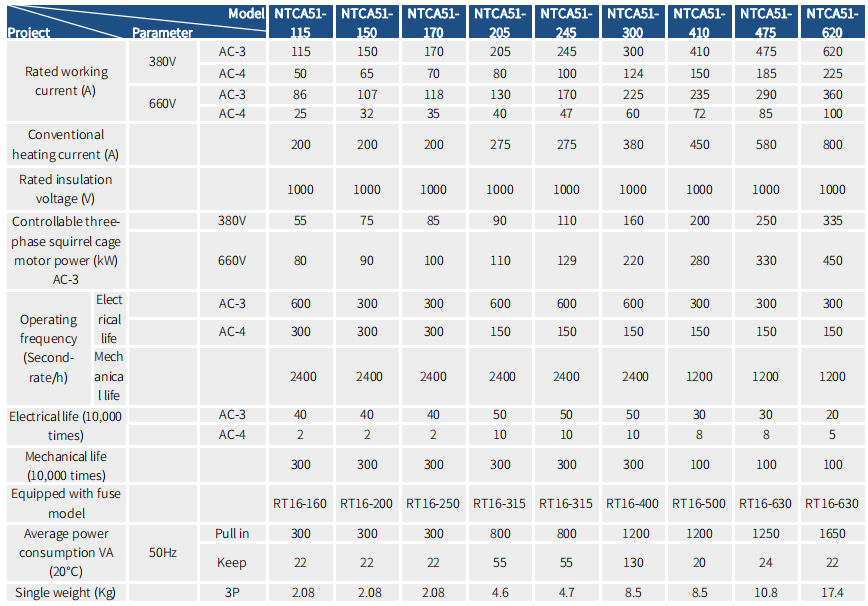

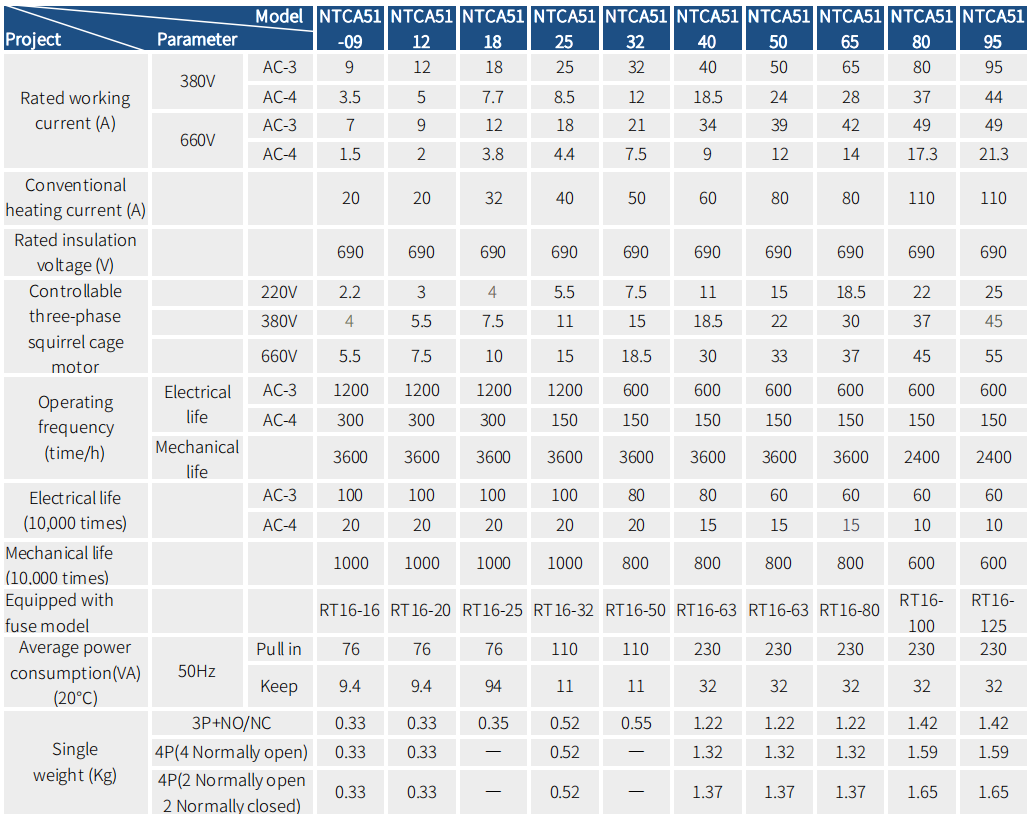

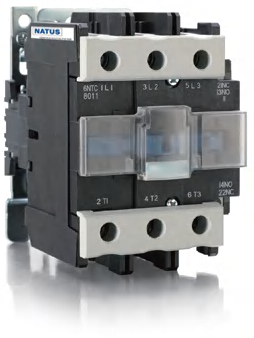

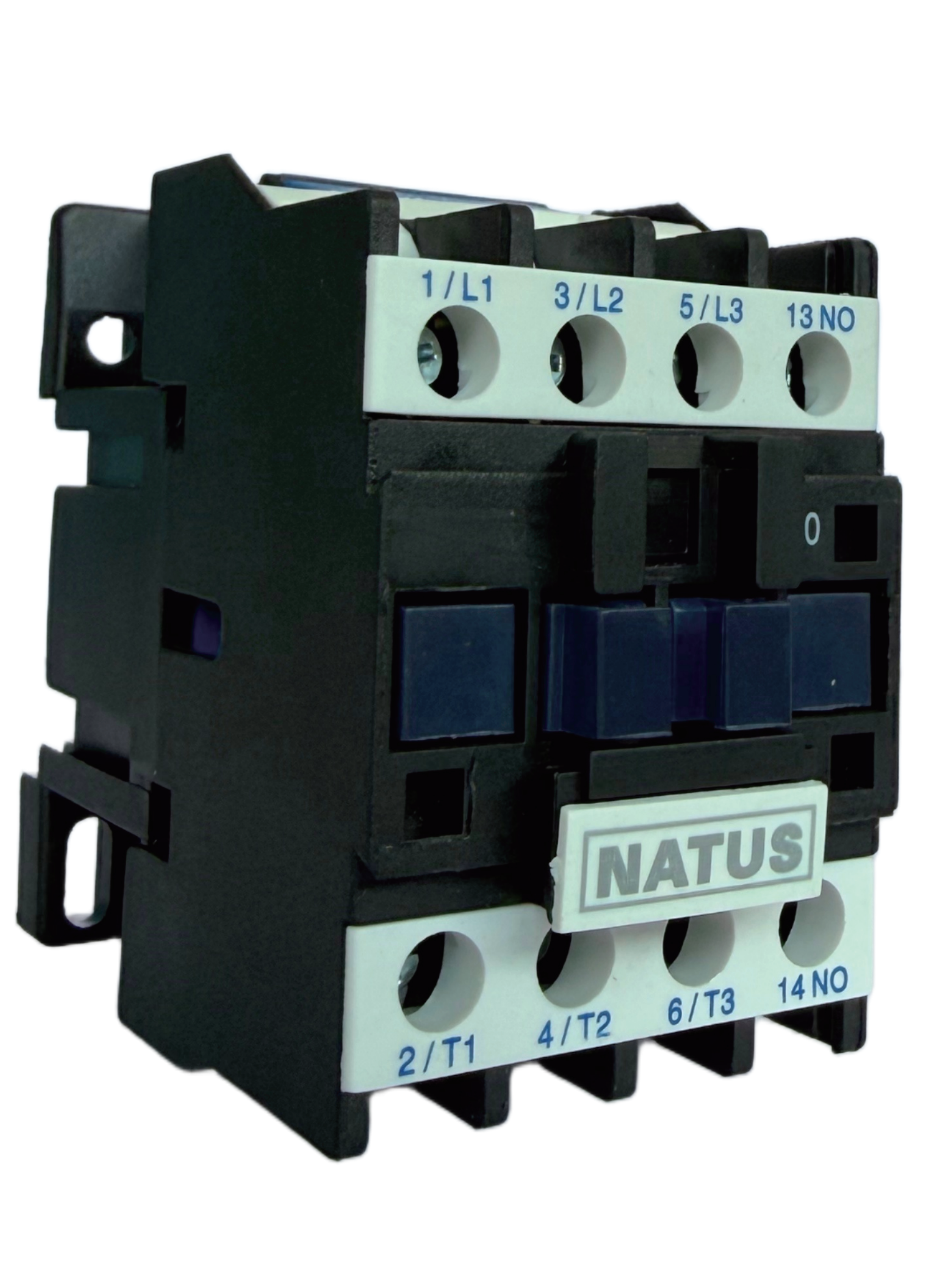

NTCA51 series AC contactors (hereinafter referred to as contactors) are mainly used for AC 50Hz or 60Hz, rated insulation voltage of 690V, and rated current to 620A when the rated working voltage is 380V under the AC-3 use category. It is used for making and breaking circuits, and can be combined with appropriate thermal overload relays to form electromagnetic starters to protect circuits that may be overloaded.It is suitable for frequent starting and control of AC motors.

This product complies with GB14048.4 and IEC60947-4-1 standards.

Remarks:

09-32 comes with auxiliary contacts: 1 normally open or 1 normally closed (please specify 10 or 01 when ordering);
40-95 comes with auxiliary contacts: 1 normally open and 1 normally closed;
Above 95 does not come with auxiliary contacts.
