Main features of the product

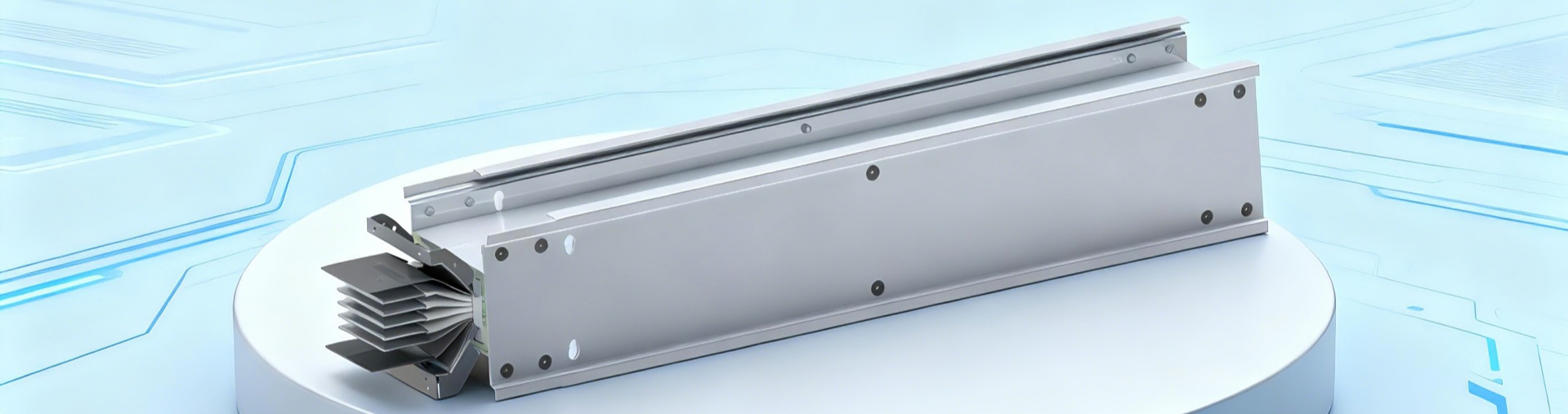

The resin molded bus duct has a fully enclosed integrated design structure, and the conductor is completely molded and sealed in the epoxy resin composite material structure. The excellent bonding and sealing characteristics of the epoxy resin material make the molded bus duct have excellent waterproof performance
The combination of plug-in functional units and Natus epoxy resin cast bus duct system allows operators to increase or decrease loads at any time without the need for power outage
Compact design (saving 30% of installation space compared to conventional busbar equipment)
Insulation Class F (for indoor and outdoor use between -40 º C and 55 º C)
High overload capacity (allowing 25% overload within 2 hours)
Reliable fire and explosion resistance performance
Technical parameter
| Serial number | Name | Main technical parameters | ||
| 1 | Standard |
IEC 60439-1, IEC 60439-2, IEC 60331, CNS 14286, CNS 12514, CNS 14165, CNS 11073 JIS C8364, JIS A1304, JIS H3140, GB 7251-1, GB 7251-2, ANSI/ UL 857, NEMA BU-01 |
||
| 2 | Frequency | 50/ 60 Hz | ||
| 3 | Rated insulation voltage (Ui) | AC/DC 1000V | ||
| 4 | Rated operating voltage (Ue) | AC 1000V | ||
| 5 | Rated current (In) | (630-6300)A | ||
| 6 | Overvoltage category/pollution level | III/3 | ||
| 7 | ambient temperature | (-40...+55)ºC | ||
| 8 | Fire resistance performance | 850 º C/30 minute closed surface/S90/S120 | ||
| 9 | Overload capacity | 25% 2 hours | ||
| 10 | Protection level | IP 68 | ||
