System composition:

As a busbar type protection, one 6NTHG-K arc protection main unit and one (or more) 6NTHG-C arc protection acquisition units are required.

NTPA81-Carc protection acquisition unit provides 8-channel arc-light acquisition input and 8-channel relay output, which corresponds to the input signal one by one to realize the function of hard fault location.
The main unit is separated from the acquisition unit. The main unit is installed in the incoming cabinet, and the acquisition units are installed in the feeder cabinet.
Between the main unit and the acquisition unit, the arc signal is connected by optical fiber; the data communication is connected by serial port.
The main unit can provide dual-port communication mode, support RS485, Ethernet port and other interface methods, and support various communication protocols such as Profibus, ModBus@RTU, CAN, IEC103, IEC104, etc.
The main unit supports two rated input currents 1A or 5A.

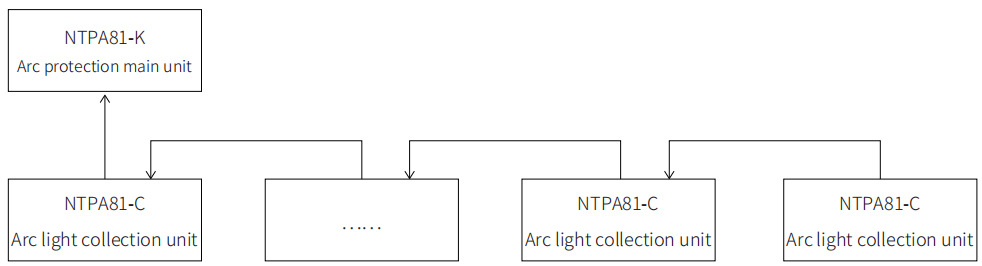

NTPA81-K arc protection main unit is the core component of the arc protection system. It is responsible for the collection, measurement, calculation and logical judgment of the input quantity, and realizes various protection logics of the system, communication with the monitoring system in the station, self-checking and other auxiliary functions.NTPA81-C arc light collection unit This unit is used as the collection unit of arc protection, provides 8 arc light collection inputs and 8 outputs, adopts the probe method to collect the arc light, and transmits the signal to the main unit through the optical fiber, and has a communication port with the main unit. unit to transmit data. When there are multiple acquisition units, the arc light signal is transmitted serially between the acquisition units, and finally transmitted to the main unit.
