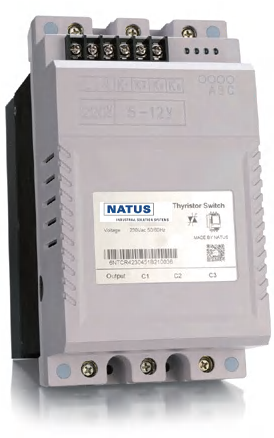

The thyristor regulating switch uses zero-crossing trigger technology to quickly and smoothly connect capacitors to and from the grid Disconnect without generating inrush current, especially suitable for reactive power compensation in situations where reactive power changes rapidly.Ideal solution for rate factor correction. Can be used for common compensation of three-phase reactive current and independent of any phase of three-phase reactive current Compensation (sub-compen sation) can be directly controlled by the switching controller through DC or AC signal. The product has a very strong bearing It has the ability to be impacted by cold and heat, has strong heat dissipa tion ability and lower temperature rise, and can work stably.

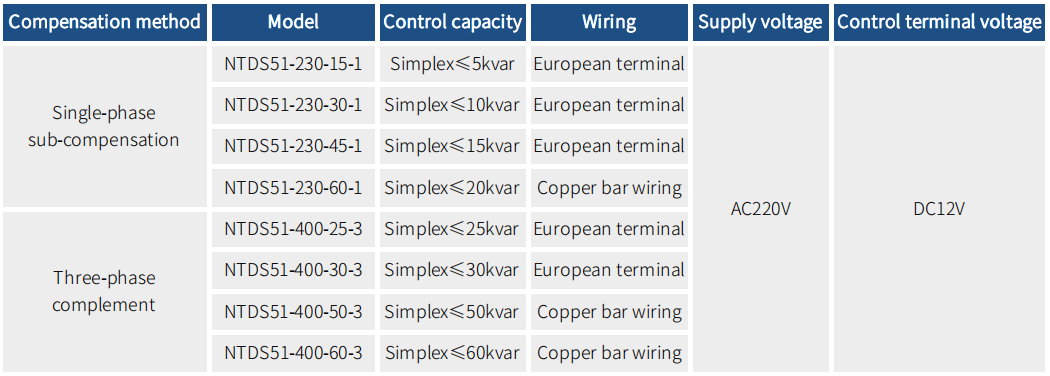

Specification selection table:
