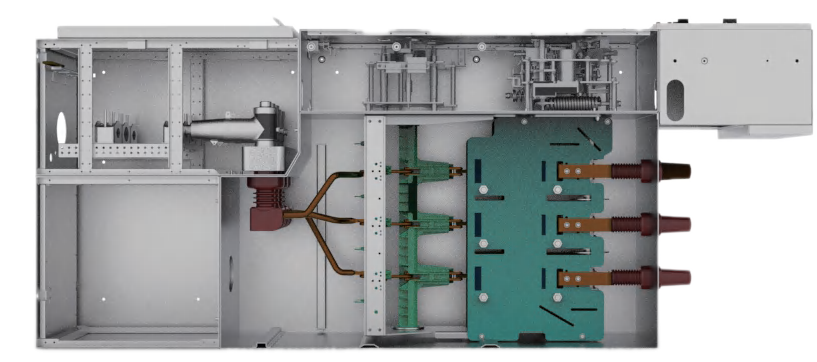

Main features of the product
Using dry air as insulation medium, environmentally friendly
The core unit (gas box) adopts 304 stainless steel and laser static sealing welding technology, making its protection level as high as IP67
The isolation switch and grounding switch only have one operating handle, so there is no need to identify or worry about errors
The connection method of the main busbar can be selected as top expansion or side expansion, which is easy to expand
Complete logic and mechanical interlocking system, integrated with mechanical switch position indication and panel simulation diagram
Fully insulated, fully shielded, plug-in cable, maintenance free, easy to install
Complete and reliable "five prevention" interlocking and operating mechanism with dual anti misoperation system

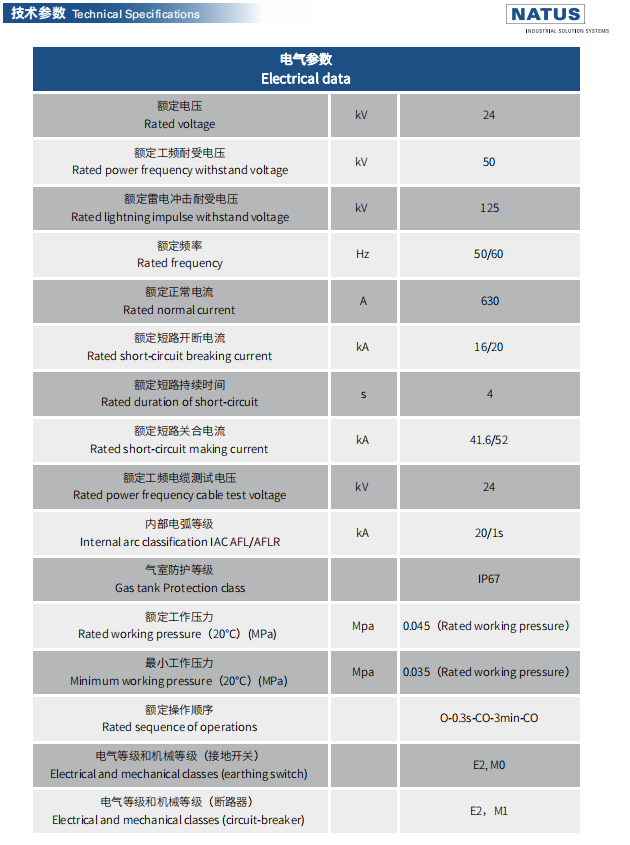

Technical parameter
| Serial number | Name | Unit | Main technical parameters | |
| 1 | Rated insulation voltage | Rated voltage | kV | 12 |
| Rated short-time power frequency withstand voltage | ||||
| -Alternating, relative to each other | kV | 42 | ||
| -Isolation fracture | kV | 48 | ||
| Rated impulse withstand voltage | ||||
| -Alternating, relative to each other | kV | 75 | ||
| -Isolation fracture | kV | 85 | ||
| 2 | Protection level | Shell | IP4X | |
| Inflatable compartment | IP67 | |||
| 3 | Rated current | a bus or bus bar | A | 630 |
| 4 | Rated frequency | Hz | 50 | |
| 5 | Internal arcing | kA/s | 25/1 | |
| 6 | Annual gas leakage rate | % | ≤0.01 | |
| 7 | Rated inflation pressure (gauge pressure at 20 ℃) | Mpa | 0.02 | |
| 8 | Minimum functional pressure (gauge pressure at 20 ℃) | Mpa | 0 | |
| 9 | Pressure relief device releases pressure (gauge pressure at 20 ℃) | Mpa | 0.16 | |
| 10 | Electromagnetic compatibility （EMC） | Level 3 | ||
| 11 | Mechanical lifespan | Load switch | 次 | 10000 |
| Isolating switch | 次 | 3000 | ||
| Grounding switch | 次 | 3000 | ||
