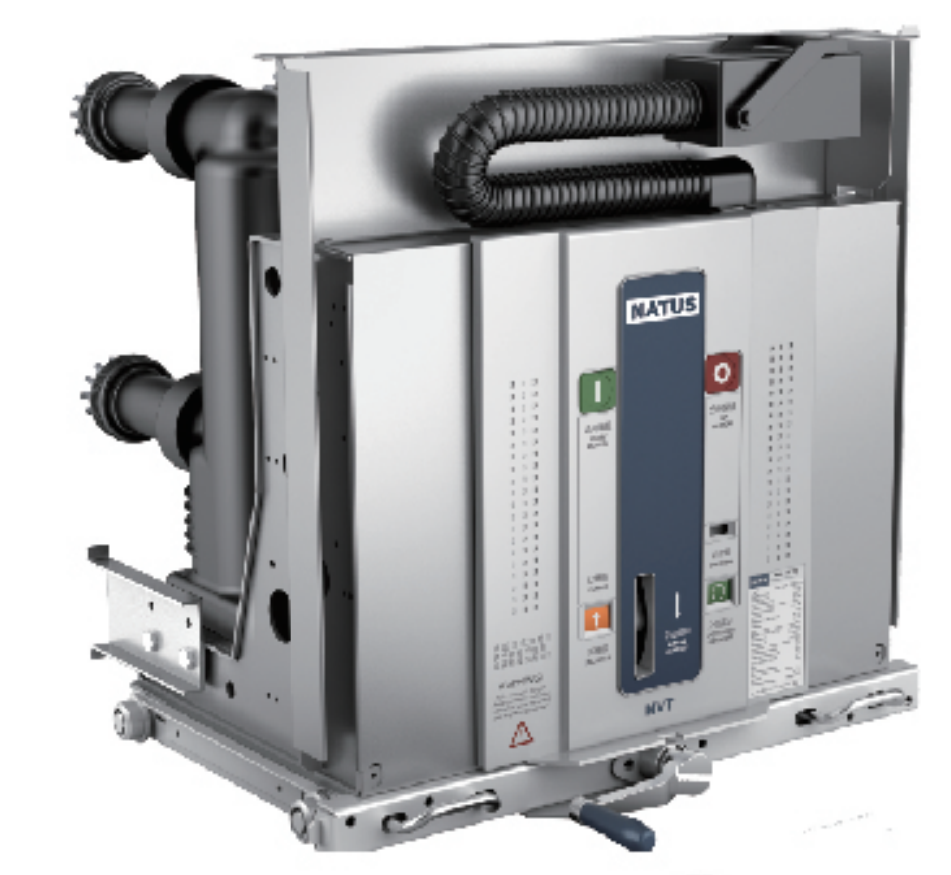

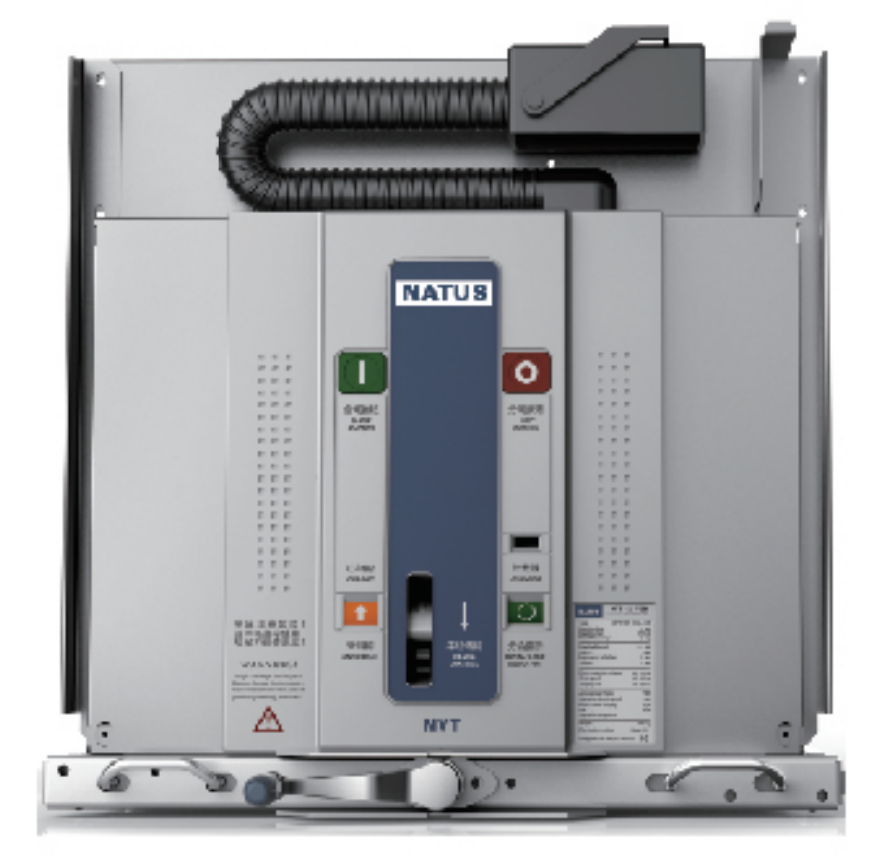

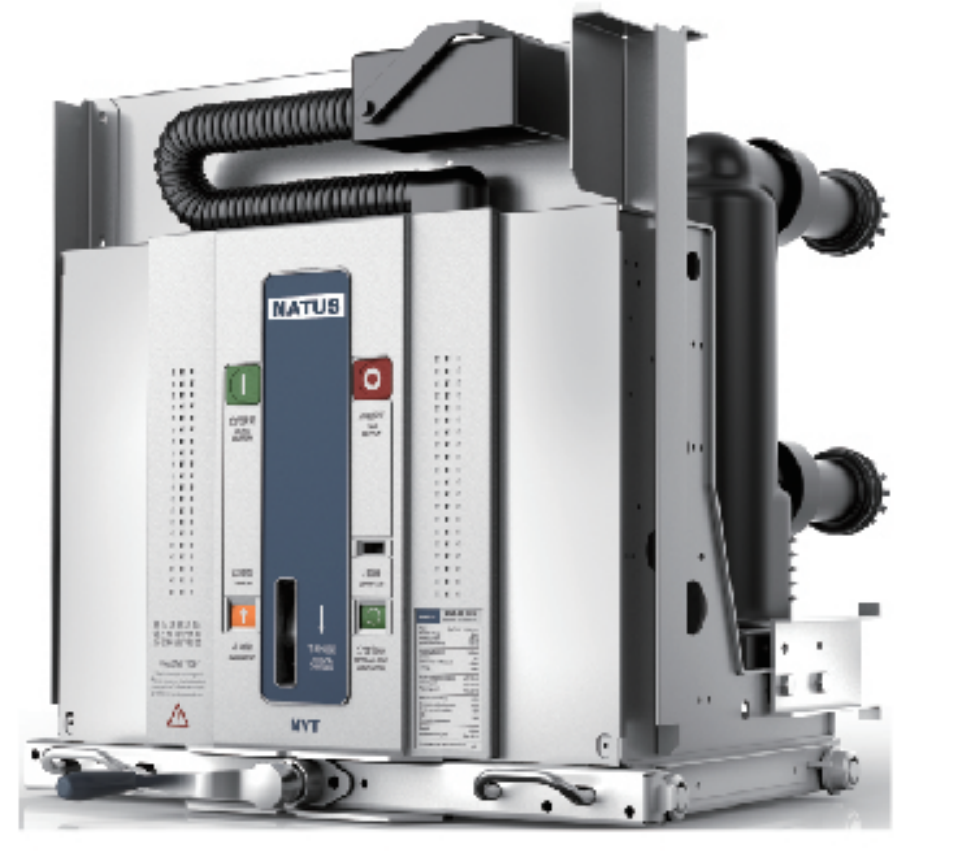

The NVT series vacuum circuit breaker is a new-generation product launched by Natuo Company, integrating 50 years ofexperience in power equipment manufacturing in compliance with Chinese national and industrial standards. It adoptswell-known domestic brand vacuum interrupters and solid - sealed insulation technology, equipped with a mature modularspring operating mechanism, and features interfaces for intelligent upgrade. With a simple structure, the product achievesmaintenance-free operation.

It can be optionally installed in mainstream medium-voltage switchgears at home and abroad, compatible with cabinettypes of 65omm, 80omm and 100omm. Its interface dimensions are interchangeable with mainstream circuit breakersworldwide, and the product has a global application track record.
